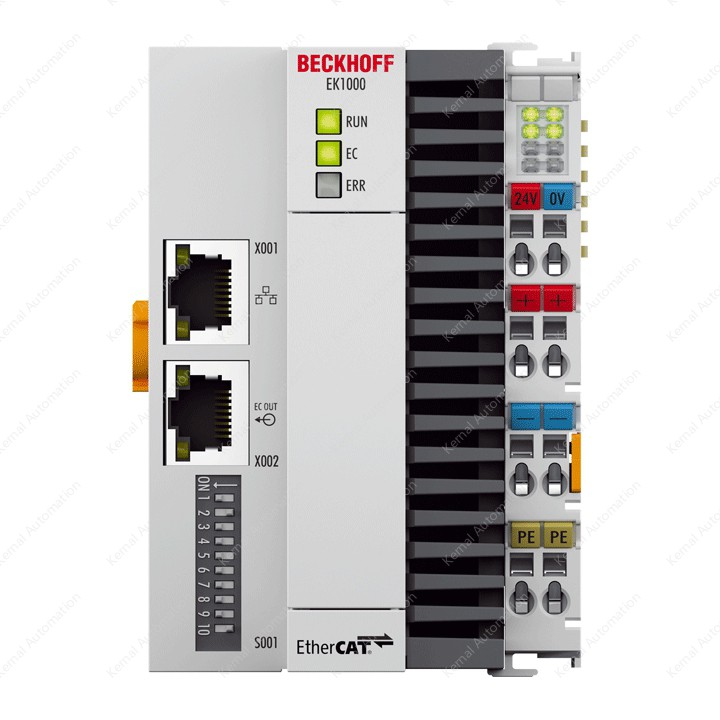

Technical dataEK1000Task within EtherCAT systemcoupling of EtherCAT Terminals (ELxxxx) to TSN networksNetworksmode 1: for unmanaged switch networks;
mode 2: for TSN networks (in preparation)Data transfer mediumEthernet/EtherCAT cable (min. Cat.5), shieldedDistance between stationsmax. 100 m (100BASE-TX)Number of EtherCAT Terminalsup to 65,534Type/number of peripheral signals–ProtocolEtherCAT Open ModeDelay–Data transfer rates100 Mbit/sConfigurationnot requiredBus interfaceX001 (RJ45) = 100 Mbit/s Ethernet (TSN); X002 (RJ45) = 100 Mbit/s EtherCAT (EK1100 e.g.)Power supply24 V DC (-15 %/+20 %)Input currenttyp. 120 mA + (total E-bus current)/4Current supply E-bus2 APower contactsmax. 24 V DC/max. 10 AElectrical isolation500 V (power contact/supply voltage/Ethernet)Operating/storage temperature-25…+60 °C/-40…+85 °CEMC immunity/emissionconforms to EN 61000-6-2/EN 61000-6-4Relative humidity95 %, no condensationVibration/shock resistanceconforms to EN 60068-2-6/EN 60068-2-27Protect. rating/installation pos.IP20/variableApprovals/markingsCE
