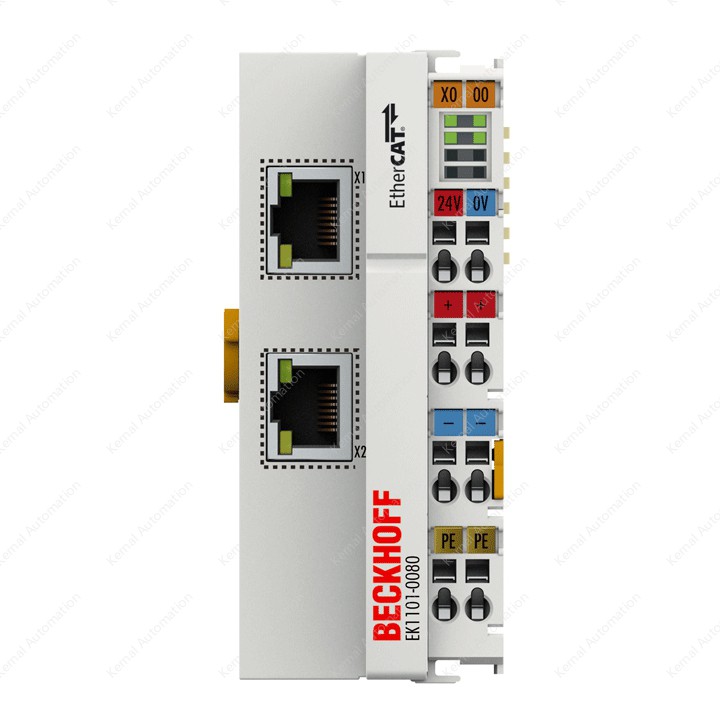

Technical dataEK1101-0080Task within EtherCAT systemEtherCAT coupler with ID switch, Fast Hot ConnectData transfer mediumEthernet/EtherCAT cable (min. Cat.5), shieldedDistance between stationsmax. 100 m (100BASE-TX)Number of EtherCAT Terminalsup to 65,534Type/number of peripheral signalsmax. 4.2 GB addressable I/O pointsNumber of configurable IDs4096ProtocolEtherCATDelayapprox. 1 µsData transfer rates100 Mbit/sBus interface2 x RJ45Power supply24 V DC (-15 %/+20 %)Current consumption from US70 mA + (∑ E-bus current/4)Current consumption from UPloadCurrent supply E-bus2000 mAPower contactsmax. 24 V DC/max. 10 AElectrical isolation500 V (power contact/supply voltage/Ethernet)Weightapprox. 105 gOperating/storage temperature-25…+60 °C/-40…+85 °CEMC immunity/emissionconforms to EN 61000-6-2/EN 61000-6-4Relative humidity95 %, no condensationVibration/shock resistanceconforms to EN 60068-2-6/EN 60068-2-27Protect. rating/installation pos.IP20/variableApprovals/markingsCE, UL, ATEX, IECExEx markingATEX: II 3 G Ex ec IIC T4 Gc
IECEx: Ex ec IIC T4 Gc
