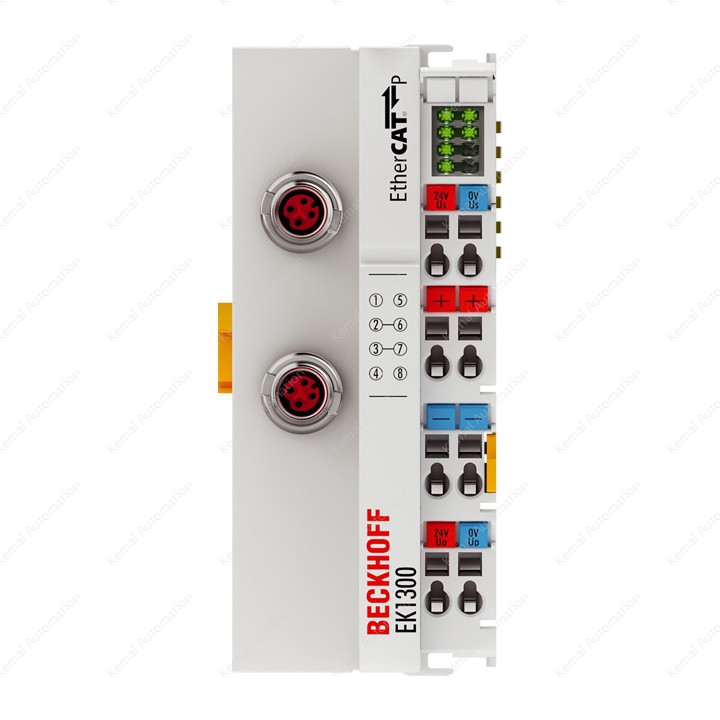

Technical dataEK1300Task within EtherCAT systemcoupling of EtherCAT Terminals (ELxxxx) to 100BASE-TX EtherCAT P networksData transfer mediumEtherCAT P cable, shielded, to 100BASE-TX EtherCAT P networksBus interface2 x M8 socket, shielded, screw type, P-codedPower supplyfrom EtherCAT P (24 V DC for US and UP)Total currentfrom EtherCAT P, max. 3 A per US and UPCurrent consumption from US40 mA + (∑ E-bus current/4)Current consumption from UPtyp. 4 mACurrent supply E-bus2000 mACurrent rating per portmax. 3 A per US and UPElectrical isolation500 V (power contact/supply voltage/Ethernet)Operating/storage temperature0…+55 °C/-25…+85 °CVibration/shock resistanceconforms to EN 60068-2-6/EN 60068-2-27EMC immunity/emissionconforms to EN 61000-6-2/EN 61000-6-4Protect. rating/installation pos.IP20/variableApprovals/markingsCE, UL
