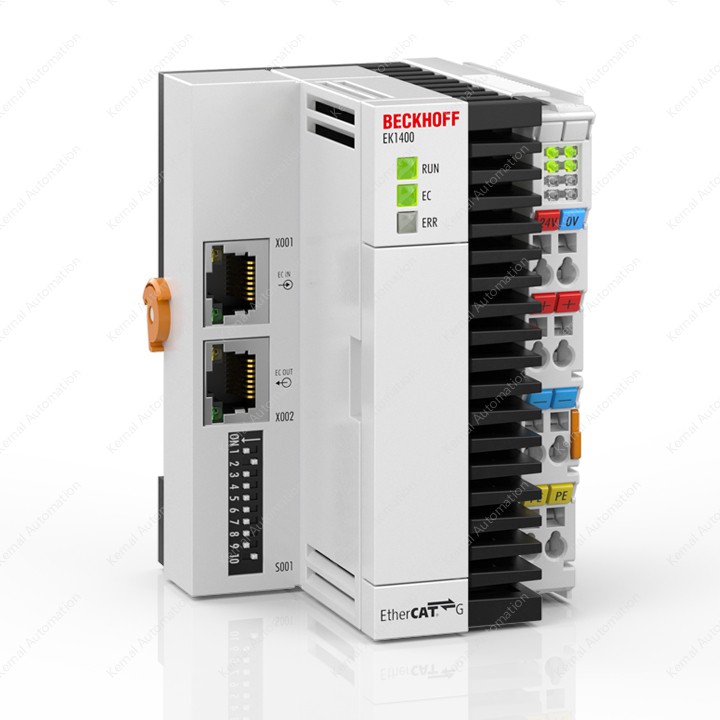

Technical dataEK1400Task within EtherCAT systemcoupling of EtherCAT Terminals to EtherCAT G networksData transfer mediumEthernet/EtherCAT cable (min. Cat.5), shieldedDistance between stationsmax. 100 m (1000BASE-T)Number of EtherCAT Terminalsup to 65,534Type/number of peripheral signalsmax. 4.2 GB addressable I/O pointsProtocolEtherCATDelayapprox. 1 µsData transfer rates1 Gbit/sConfigurationTwinCATBus interface2 x RJ45Power supply24 V DC (-15 %/+20 %)Power contactsmax. 24 V DC/max. 10 AElectrical isolation500 V (power contact/supply voltage/Ethernet)Operating/storage temperature0…+55 °C/-25…+85 °CEMC immunity/emissionconforms to EN 61000-6-2/EN 61000-6-4Relative humidity95 %, no condensationVibration/shock resistanceconforms to EN 60068-2-6/EN 60068-2-27Protect. rating/installation pos.IP20/variableApprovals/markingsCE
