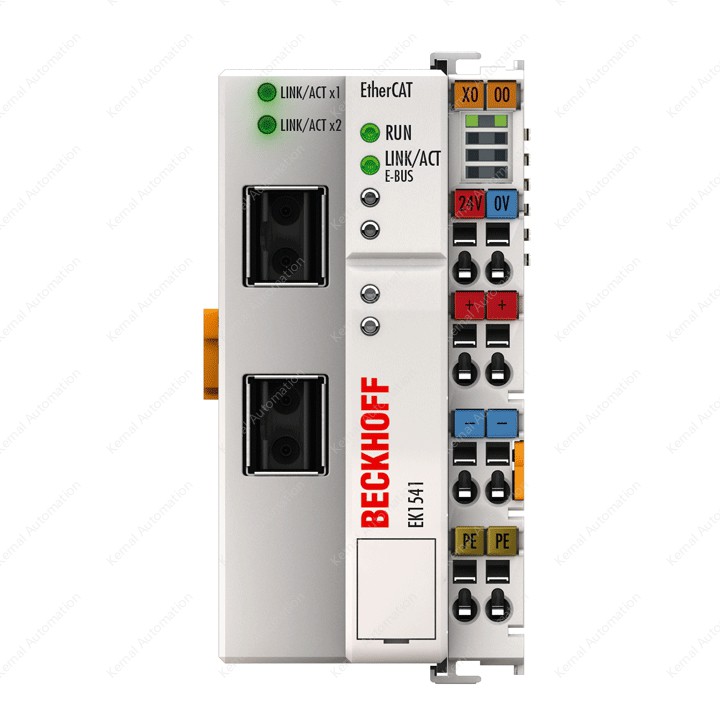

Technical dataEK1541Task within EtherCAT systemcoupling of EtherCAT Terminals (ELxxxx) to 100BASE-FX EtherCAT POF networks, with identity verificationData transfer mediumplastic optical fiber (POF)Distance between stationsmax. 50 m (100BASE-FX)Number of EtherCAT Terminalsup to 65,534Type/number of peripheral signalsmax. 4.2 GB addressable I/O pointsNumber of configurable IDs4096ProtocolEtherCATDelayapprox. 1 µsData transfer rates100 Mbit/sBus interface2 x ZS1090-0008 POF plugPower supply24 V DC (-15 %/+20 %)Current consumption from US130 mA + (∑ E-bus current/4)Current consumption from UPloadCurrent supply E-bus2000 mAPower contactsmax. 24 V DC/max. 10 AElectrical isolation500 V (power contact/supply voltage/Ethernet)Weightapprox. 190 gOperating/storage temperature-25…+60 °C/-40…+85 °CEMC immunity/emissionconforms to EN 61000-6-2/EN 61000-6-4Relative humidity95 %, no condensationVibration/shock resistanceconforms to EN 60068-2-6/EN 60068-2-27Protect. rating/installation pos.IP20/variableApprovals/markingsCE, UL
