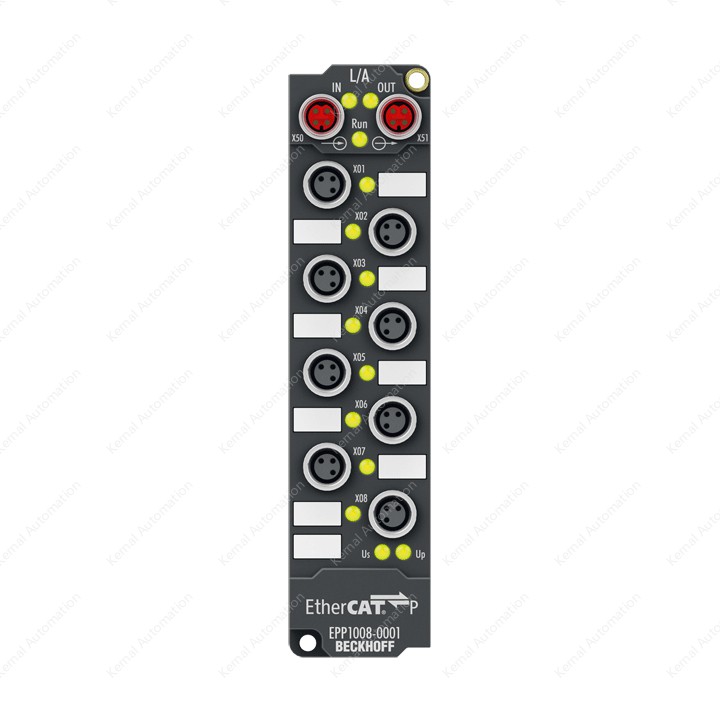

The EPP1008-0001 EtherCAT P Box with digital inputs acquires binary control signals from the process level and transfers them, with electrical isolation, to the controller. The signal state is displayed by LEDs; the signals are connected via screwable M8 connectors.
The sensors are supplied from the control voltage US. The load voltage UP is not used in the input module. The connected sensors are supplied via an internal, short-circuit proof driver block with a total of 0.5 A for all sensors.
Thanks to the 3.0 ms input filter the EPP1008-0001 is particularly suitable for electronic and mechanical inputs, with the benefit of additional signal debouncing.
USD
- USD
- CNY
- HKD
- EUR
English
- العربية
- čeština
- dansk
- Deutsch
- Ελληνικά
- English
- Español
- Français
- ic
- Italiano
- Netherlands
- norsk Språk
- język polski
- pt
- Português
- 中文
IO-EtherCAT BOX EPPxxxx
EPP1008-0001
EPP1008-0001
Subscribe to get pricesModel: EPP1008-0001
Order No:
SKU: 10000027089001
Condition: New Sealed Under Guarantee
Size: 160.00 mm，70.00 mm，45.00 mm
Weight: 200.00G
Product Selection Engineer：Jun
In Stock
Brief Introduction
EPP1008-0001
<tbody><tr><td>Protocol</td><td>EtherCAT</td></tr><tr><td>Bus interface</td><td>2 x M8 socket, P-coded, shielded</td></tr><tr><td>Specification</td><td>EN 61131-2, type 1/3</td></tr><tr><td>Number of inputs</td><td>8</td></tr><tr><td>Input connections</td><td>M8 x 1, 3-pin, a-coded</td></tr><tr><td>Nominal input voltage</td><td>24 V DC (-15%/+20%)</td></tr><tr><td>Input filter</td><td>3.0 ms</td></tr><tr><td>“0” signal voltage</td><td>-3…+5 V (EN 61131-2, type 3)</td></tr><tr><td>“1” signal voltage</td><td>11…30 V (EN 61131-2, type 3)</td></tr><tr><td>Input current</td><td>typ. 3 mA (EN 61131-2, type 3)</td></tr><tr><td>Distributed clocks</td><td>–</td></tr><tr><td>Sensor supply</td><td>from control voltage, max. 0.5 A, short-circuit proof in total</td></tr><tr><td>Current consumption from U<span class="EFF_MAX_subscript">S</span></td><td>typ. 100 mA</td></tr><tr><td>Special features</td><td>–</td></tr><tr><td>Weight</td><td>approx. 165 g</td></tr><tr><td>Operating/storage temperature</td><td>-25…+60°C/-40…+85°C</td></tr><tr><td>Vibration/shock resistance</td><td>conforms to EN 60068-2-6/EN 60068-2-27</td></tr><tr><td>EMC immunity/emission</td><td>conforms to EN 61000-6-2/EN 61000-6-4</td></tr><tr><td>Approvals/markings</td><td>CE, UL</td></tr><tr><td>Protect. rating/installation pos.</td><td>IP65/66/67 (conforms to EN 60529)/variable</td></tr></tbody>
Description
