Type: Single crystalline silicon solar panel
Cell type: monocrystalline silicon solar cell
Rated power: 80WP
Product size: 760*590*30mm
Number of batteries: 36PCS
Open circuit voltage: 21.24V
Short circuit current: 4.97A
Waterproof rating: IP67
Maximum reverse current: 10A
Operating temperature: -40°C~85°C
Maximum power point operating voltage: 18V
Weight: 5.3KG
Material: Aluminum frame
Package: EVA
Glass: 3.0 cloth glass
Hail test: 25mm/23m/s
Maximum positive static load: 5400PA
Maximum static load on back: 2400PA
USD
- USD
- CNY
- HKD
- EUR
English
- العربية
- čeština
- dansk
- Deutsch
- Ελληνικά
- English
- Español
- Français
- ic
- Italiano
- Netherlands
- norsk Språk
- język polski
- pt
- Português
- 中文

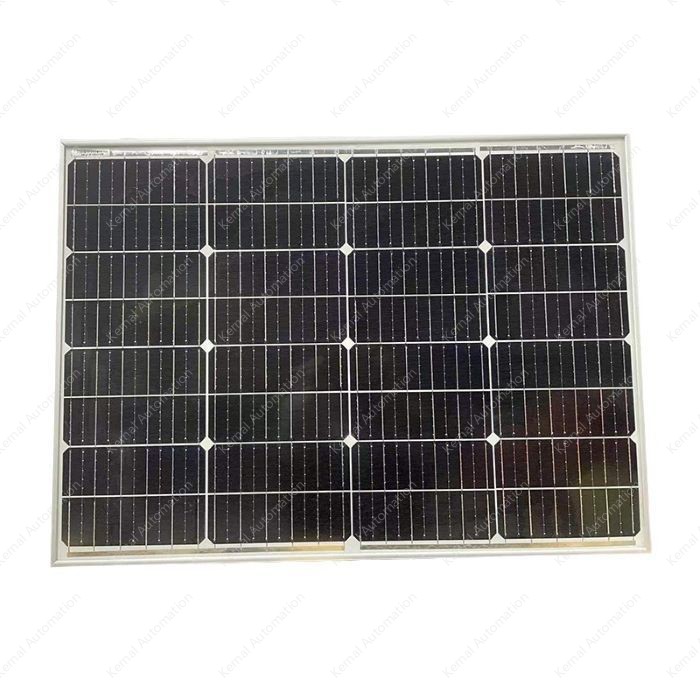

JIN CHEN Photovoltaic panel
HY-80WD-18V
HY-80WD-18V
Subscribe to get pricesModel: HY-80WD-18V
Order No:
SKU: 1725007688326326509
Condition: New Sealed Under Guarantee
Size: 76.00 cm，59.00 cm，3.00 cm
Weight: 5300.00g
Product Selection Engineer：XiongZH
In Stock
Brief Introduction
HY-80WD-18V
Type: Single crystalline silicon solar panelCell type: monocrystalline silicon solar cellRated power: 80WPProduct size: 760*590*30mmNumber of batteries: 36PCSOpen circuit voltage: 21.24VShort circuit current: 4.97AWaterproof rating: IP67Maximum reverse current: 10AOperating temperature: -40°C~85°CMaximum power point operating voltage: 18VWeight: 5.3KGMaterial: Aluminum framePackage: EVAGlass: 3.0 cloth glassHail test: 25mm/23m/sMaximum positive static load: 5400PAMaximum static load on back: 2400PA
