As of November 23, 2023
Specifications and design of the products are subject to change without notice for the product improvement.
Spec Detail
| Item | Specifications |
|---|---|

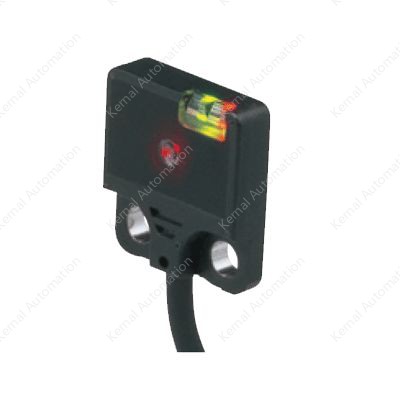

| Product Number | EX-L262 |
| Part Number | EX-L262 |
| Regulatory compliance | EMC Directive, RoHS Directive |
| Sensing range | 20 to 70 mm 0.787 to 2.756 in (Convergent point: 22 mm 0.866 in) (Note)The sensing range is specified for white non-glossy papar (100 x 100 mm 3.937 x 3.937 in) as the object. |
| Emission spot size (Typical) | Approx. 5 × 1 mm 0.197 × 0.039 in (vertical x horizontal) (at a sensing distance of 50 mm) |
| Sensing object | Opaque, translucent or transparent object (Note)Make sure to confirm detection with an actual sensor before use. |
| Minimum sensing object (Typical) | - |
| Hysteresis | 20 % or less of operation distance |
| Repeatability | Perpendicular to sensing axis: 0.2 mm 0.0080 in or less |
| Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Current consumption | 15 mA or less |
| Output | NPN open-collector transistor - Maximum sink current: 50 mA |
| Output:Output operation | Light-ON / Dark-ON selectable by the output operation switching input |
| Output:Short-circuit protection | Incorporated (short-circuit protection / inverse polarity protection) |
| Response time | 0.5 ms or less |
| Sensitivity adjuster | Continuously variable adjuster |
| Protection | IP67(IEC) |
| Ambient temperature | -10 to +55 ℃ +14 to +131 ℉ (No dew condensation or no icing condition), Storage: -30 to +70 ℃ -22 to +158 ℉ |
| Ambient humidity | 35 to 85%RH , Storage: 35 to 85%RH |
| Emitting element | Red semiconductor laser Class 1 (IEC / JIS/ FDA/ GB) (Note：This product complies with 21 CFR 1040.10 and 1040.11 Laser Notice No. 56, dated May 8, 2019, issued by CDRH (Center for Devices and Radiological Health) under the FDA (Food and Drug Administration).) (Maximum output: 1.3 mW, Peak emission wavelength: 655 nm 0.026 mil) |
| Material | Enclosure: Polybutylene terephthalate, Front cover: Acylic, Lens: Glass, Indicator part: Polyarylate |
| Cable | 0.15 mm2 4-core cabtyre cable, 2 m 6.562 ft long |
| Cable extension | Extension up to total 50 m 164.042 ft is possible with 0.3 mm2, or more, cable |
| Weight | Net weight: 45 g approx Gross weight: 60 g approx |
| Accessory | MS-EXL2-3 (Mounting plate): 1 pc. |
