Corrosion resistance class CRC
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
-10 °C ... 80 °C
Nominal torque
9 Nm
Tolerance for nominal tightening torque
± 20%
Product weight
23 g
Type of mounting
External hexagon, size 17 mm
Pneumatic connection, port 1
Male thread G1/4
Pneumatic connection, port 2
For tubing outside diameter of 8 mm
Colour of release ring
Blue
Material screwed plug
Nickel-plated brass
Note on materials
RoHS-compliant
Material housing
PBT
Material release ring
POM
Material tubing seal
NBR
Material tubing clamp component
High-alloy stainless steel
USD
- USD
- CNY
- HKD
- EUR
English
- العربية
- čeština
- dansk
- Deutsch
- Ελληνικά
- English
- Español
- Français
- ic
- Italiano
- Netherlands
- norsk Språk
- język polski
- pt
- Português
- 中文
Pneumatic Accessories

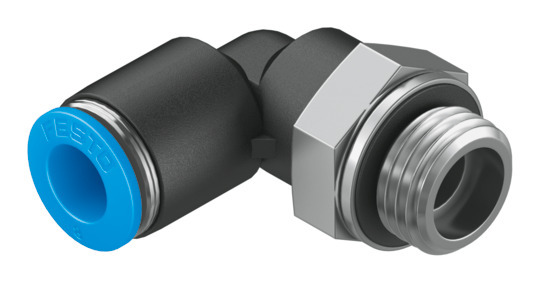

QS-6-4
QS-6-4
Subscribe to get pricesModel: QS-6-4
Order No: QS-6-4 153037
SKU: 1736925179826948750
Condition: New Sealed Under Guarantee
Size: 0.00 ，0.00 ，0.00
Weight: 23.00g
Product Selection Engineer：Zuohuiqin
In Stock
Brief Introduction
QS-6-4
Corrosion resistance class CRC1 - Low corrosion stressLABS (PWIS) conformityVDMA24364-B1/B2-LAmbient temperature-10 °C ... 80 °CNominal torque9 NmTolerance for nominal tightening torque± 20%Product weight23 gType of mountingExternal hexagon, size 17 mmPneumatic connection, port 1Male thread G1/4Pneumatic connection, port 2For tubing outside diameter of 8 mmColour of release ringBlueMaterial screwed plugNickel-plated brassNote on materialsRoHS-compliantMaterial housingPBTMaterial release ringPOMMaterial tubing sealNBRMaterial tubing clamp componentHigh-alloy stainless steel
