Brief Introduction

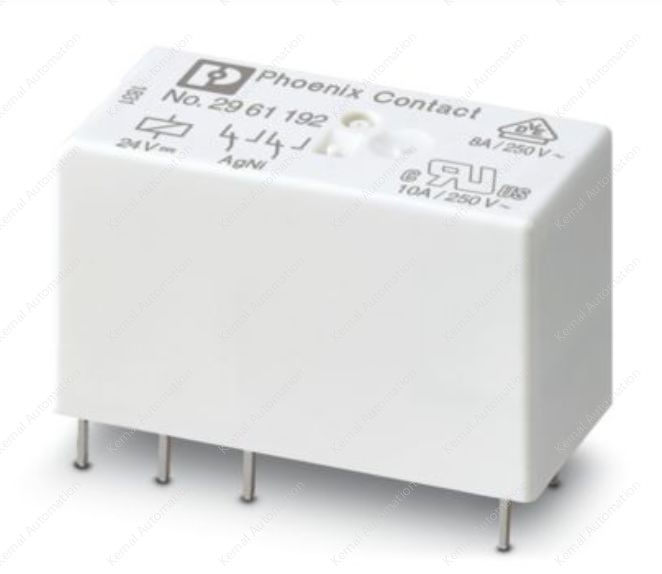

REL-MR-24DC/21-21

Product type: Plug-in miniature power relay, which belongs to a single relay.Electrical characteristicsInput data: The rated input voltage is 24V DC, the input voltage range is 15.6V DC to 59.52V DC, and the drive mode is monostable and nonpolarized. At the rated input voltage, the typical input current is 17mA, the typical response time is 7ms, the typical release time is 3ms, and the coil resistance is 1440Ω±10% at 20°C.Output data: 2 changeover contacts for contact switching type, single contact type for switching contact, contact material for AgNi. The maximum switching voltage is 250V AC/DC, the minimum switching voltage is 5V (at 10mA), the limited continuous current is 8A, the maximum inrush current is 25A (20ms), and the minimum switching current is 10mA (at 5V). Switching capacitance of 2A (at 24V, DC13), also up to 3A (at 24V, AC15), 3A (at 120V, AC15), and 3A (at 250V, AC15)
