Brief Introduction

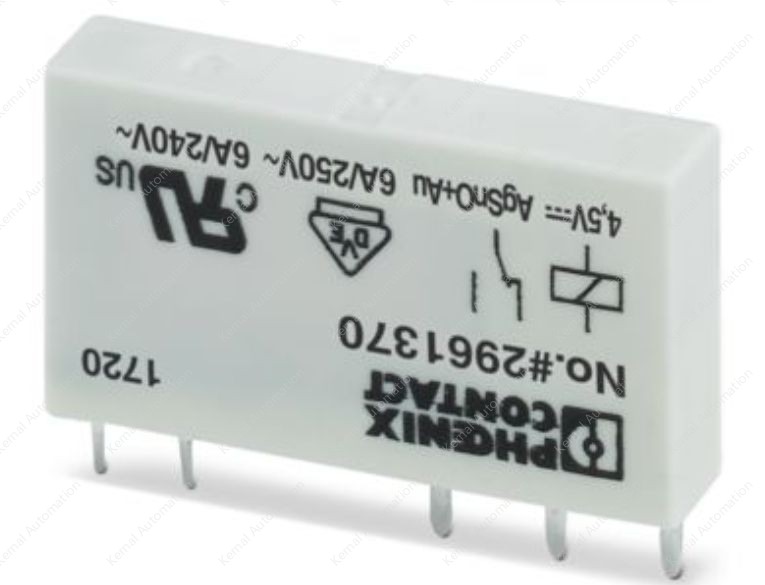

REL-MR-4,5DC/21AU

Product type: A single relay, which is a miniature power relay with plug-in connection for easy installation and maintenance.Electrical characteristicsInput data: Rated input voltage is 4.5V DC and input voltage range is 2.7V DC to 12.4V DC. The drive is monostable and non-polarized, with a typical input current of 38mA, a typical response time of 5ms, a typical release time of 2.5ms, a coil resistance of 119Ω±10% at 20°C, and a maximum power consumption of 0.17W at rated input voltage.Output data: 1 changeover contact of the contact switching type, single contact of the switching contact type, contact material of AgSnO, hard gold plating. Under normal conditions, the maximum switching voltage is 30V AC, 36V DC, the minimum switching voltage is 100mV (at 10mA), the limited continuous current and the maximum inrush current are both 50mA, the minimum switching current is 1mA (at 24V), and the maximum power rating (resistive load) is 1.2W (24V DC). When the gold plating layer is destroyed, the maximum switching voltage is 250V AC/DC, the minimum switching voltage is 5V (at 100mA), the limited continuous current is 6A, the minimum switching current is 10mA (at 12V), the maximum power rating value (resistance load) will change accordingly, such as 140W (24V DC), 20W (48V DC), 18W (60V DC), etc., and the switching capacity is 2A (at 24V, DC13), 0.2A (at 110V, DC13), 0.1A (at 220V, DC13), etc.
