Brief Introduction

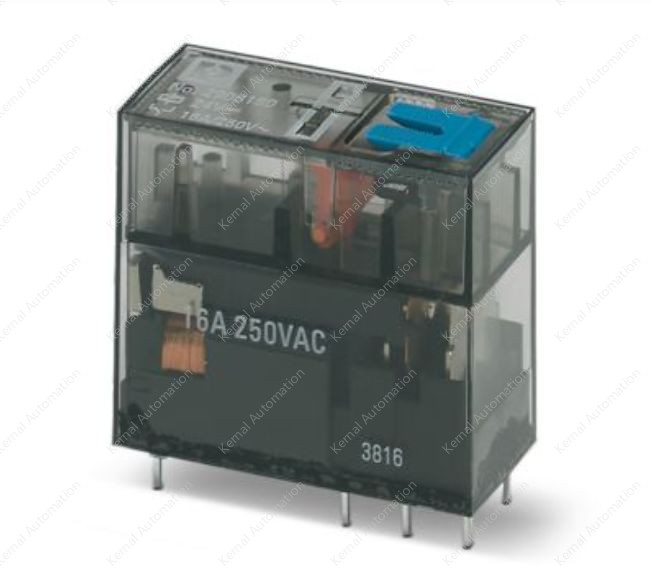

REL-MR-BL-24DC/21HC/MS

Product type: A single relay, which is a miniature power relay with plug-in connection for easy installation and maintenance.Electrical characteristicsInput data: The input voltage is rated at 24V DC and the input voltage range is 16.8V DC to 54V DC. The drive is monostable and non-polarized, with a typical input current of 17mA, a typical response time of 8ms, and a typical release time of 6ms at the rated input voltage.Output data: 1 changeover contact of the contact switching type, single contact of the switching contact type, AgNi of the contact material. The maximum switching voltage is 250V AC/DC, the minimum switching voltage is 5V (at 24mA), the limited continuous current is 16A, the maximum inrush current is 30A (300ms), and the minimum switching current is 10mA (at 12V). The maximum power ratings (resistive load) are 384W at 24V DC, 58W at 48V DC, 48W at 60V DC, 50W at 110V DC, 80W at 220V DC, and 4000VA at 250V AC, with switching capacitances of 2A at 24V, DC13, 1.5A at 230V, AC15.
