Brief Introduction

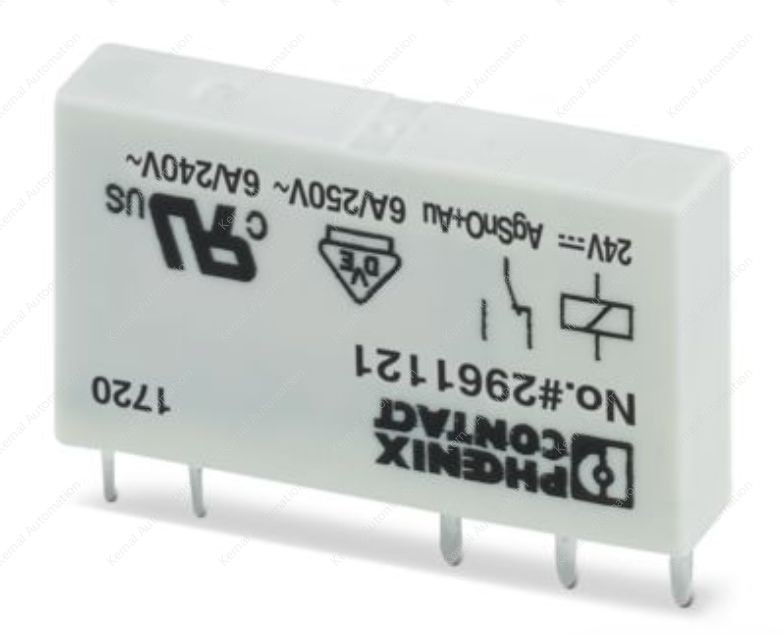

REL-MR-24DC/21AU

Electrical characteristicsInput Voltage: Rated input voltage 24V DC, input voltage range from 14.4V DC to 66V DC.Typical input current: 7mA at rated input voltage, coil resistance 3390Ω±10% at 20°C.Response and release time: Typical response time is 5ms, typical release time is 2.5ms.Output contact: with 1 changeover contact, contact material is AgSnO, hard gold plated, maximum switching voltage 30V AC or 36V DC, minimum switching voltage 100mV (at 10mA), limited continuous current 50mA, maximum starting current 50mA, minimum switching current 1mA (at 24V), maximum power rating (resistive load) 1.2W (24V DC). When the plating layer is destroyed, the maximum switching voltage becomes 250V AC, the minimum switching voltage is 5V (at 100mA), the continuous current is limited to 6A, the minimum switching current is 10mA (at 12V), and the maximum power rating (resistive load) is 140W (24V DC).
