Ordering information
Customs Tariff Number:
85044086
HS Code:
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description:

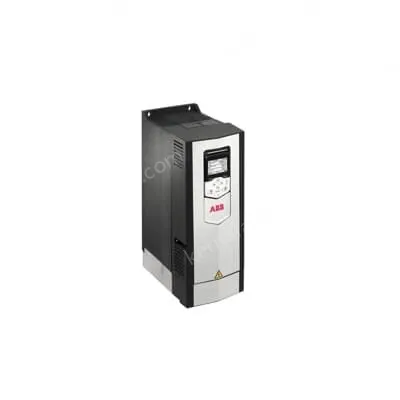

ACS880-01-072A-3 PN: 37 kW, IN: 72 A
Made-to-order:
be
MOQ:
1 piece
Order Multiple:
1 piece
Quotes only:
not
Sales Unit of Measure:
piece
size
Product Net Weight:
22.8 kg
50.265 lb
Product Depth of Clear:
274 mm
10.787 in
Product Ceiling Height:
732 mm
28.819 in
Product Width:
203 mm
7.992 in
Class 1 Package Length:
896 mm
35.276 in
Class 1 Packing Height:
329 mm
12.953 in
Class 1 Package Width:
293 mm
11.535 in
Level 1 Packaging Unit:
1 box
Certifications & Declarations (Document Code)
Declaration of Conformity - CE:
EU Declaration of Conformity for ACS880-01, ACS880-04/-04F, ACS880-11/-31, ACS880-14/-34, ACS880-M04
REACH Date:
20241203
REACH Declaration:
REACH SVHC-242 declaration
REACH Information:
True - contains substances > 0.1 mass percentage
RoHS Date:
20240508
RoHS Information:
EU Declaration of Conformity for ACS880-01, ACS880-04/-04F, ACS880-11/-31, ACS880-14/-34, ACS880-M04
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Technical parameters
Number of Phases:
3
Ingress Protection:
IP21
Enclosure Rating:
Level 1
Elevation:
4000 m
Operating Humidity (RHwith):
5 ... 95
Noise level dB(A):
64 dB(A)
Multiple Battery Information:
Lithium Coin, CR2032, 220 mAh, 3 V, 2 pcs, 6 g
Frequency (f):
47.5 ... 63 Hz
Dimensions:
R5
Input voltage (Uin):
380 ... 415 V
Mounting Type:
Wall-mounted
Communication Protocol:
CAN
DeviceNet
EtherNet/IP
MODBUS
Other Bus Systems
PROFIsafe
PROFIBUS
PROFINET IO
Number of hardware interfaces:
Industrial Ethernet 0
Other 4
Parallel 0
PROFINET 0
RS-232 0
RS-422 0
RS-485 1
Serial TTY 0
USB 1
Contain:
Control unit
PC connection
Analog Inputs:
2
Analog Output:
2
Number of Digital Inputs/Outputs:
6 / 2
Output Current, Normal Application (In):
72 A
Output current, light overload applications (ILD):
68 A
Output Current, Heavy Duty Applications (IHD):
61 A
Output Current, Normal Application (Pn):
37 kW
Output current, light overload applications (PLD):
37 kW
Output Current, Heavy Duty Applications (PHD):
30 kW
Power Consumption (@Pcons):
841 watts
Apparent power output:
50 kV· To
Efficiency Levels:
IE2
Standby Loss:
30 watts
