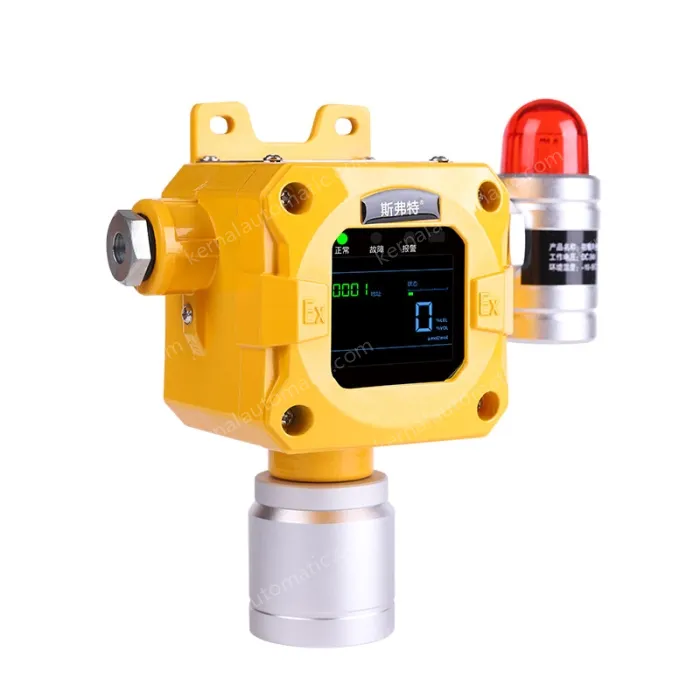

GT-STC10-C8H10

1. Explosion-proof, lightning-proof, anti-static, anti-electromagnetic interference;
2. Optional wired transmission, wireless transmission, Internet of Things, upper system;
3. Easy data backup, one-click factory reset can be restored.
4. It can be connected with the computer to monitor the concentration in real time, store and analyze, and print data data backup;
5. The standard infrared remote control can be operated without opening the cover in dangerous places, and the remote control distance is 8 meters, which is simple and practical;
6. Real-time display of concentration, and display the current alarm status and fault status;
7. Color high-definition LCD screen, high-brightness display;
8. Multi-point calibration to improve accuracy and linearity;

STC10 series gas detector is a gas detection product independently developed, practical and easy to operate, which can be installed in the hazardous area and non-explosion-proof area of Class II explosion-proof environment. According to the different characteristics of gas, the detector can be equipped with different gas sensor components to detect the corresponding gas concentration in the surrounding atmosphere, which is widely used in petrochemical industry, gas energy, pipe gallery engineering, sewage treatment, manufacturing and other large, medium and small places.

The detector has a brightness display display, and there are three sets of relay outputs inside the detector, which immediately starts the sound and light alarm signal or drives the exhaust system after the preset alarm point is exceeded.

The design, manufacture and inspection of this product comply with the following national standards: GB15322.1-2019 "Point-type combustible gas detectors for industrial and commercial use" GB3836.1-2010 "Explosive atmospheres - Part 1: General requirements for equipment" GB3836.2-2010 "Explosive atmospheres - Part 2: Equipment protected by flameproof enclosure "d".

The gas to be measured	Measuring range	Selectable measuring ranges	resolution	Alarm point
Combustible gas EX	0-100%lel	0-100%vol (infrared)	1%lel/1%vol	Low: 20 High: 50
Oxygen O2	0-30%vol	0-30%vol	0.1%vol	Low: 19% High: 23%vol
Hydrogen sulfide H2S	0-100ppm	0-100/1000ppm	1ppm	Low: 10 High: 20 ppm
Carbon monoxide CO	0-500ppm	0-500/2000/5000ppm	1ppm	Low: 50 High: 150 ppm
Carbon dioxide CO2	0-5%VOL	0-1%/5%/20%vol/50%vol/100%vol (infrared)	1ppm/0.1%vol	Low: 0.5%vol High: 1%vol
Nitric oxide NO	0-250ppm	0-500/1000ppm	1ppm	Low: 50 High: 150 ppm
NO2 nitrogen dioxide	0-20ppm	0-50/1000ppm	0.1ppm	Low: 5 High: 10 ppm
Sulfur dioxide SO2	0-20ppm	0-50/1000ppm	0.1/1ppm	Low: 5 High: 10 ppm
Chlorine CL2	0-20ppm	0-500/1000ppm	0.1ppm	Low: 5 High: 10 ppm
Hydrogen H2	0-1000ppm	0-500/2000/5000ppm	1ppm	Low: 50 High: 150 ppm
Ammonia NH3	0-100ppm	0-50/500/1000ppm	0.1/1ppm	Low: 20 High: 50 ppm
Phosphine PH3	0-20ppm	0-20/1000ppm	0.1ppm	Low: 5 High: 10 ppm
HCL hydrogen chloride	0-20ppm	0-20/500/1000ppm	0.1ppm	Low: 5 High: 10 ppm
Chlorine dioxide CLO2	0-50ppm	0-10/100ppm	0.1ppm	Low: 5 High: 10 ppm
Hydrogen cyanide HCN	0-50ppm	0-100ppm	0.1/0.01ppm	Low: 10 High: 20 ppm
Ethylene oxide C2H4O	0-100ppm	0-100ppm	1/0.1ppm	Low: 20 High: 50 ppm
ozone	0-20ppm	0-20/100ppm	0.1ppm	Low: 2 High: 5 ppm
Formaldehyde CH2O	0-20ppm	0-50/100ppm	1/0.1ppm	Low: 5 High: 10 ppm
Hydrogen fluoride HF	0-100ppm	0-1/10/50/100ppm	0.01/0.1ppm	Low: 2 High: 5 ppm
Xylene/toluene	0-20ppm	0-1/10/50/100ppm	0.01/0.1ppm	Low: 5 High: 10 ppm

Product Model:
STC10		Relay Load:
Explosion-proof certificate number:		AC: 0.3A. 125VAC; DC: 1A 30VDC
CNEx20.0165X		Signal Output:
Explosion-proof marking:		Three-wire 4~20mA or four-wire RS485, NB wireless transmission
Exd ⅡC T6 Gb		Installation:
Response time:		Wall-mounted
<30S		Housing Material:
Operating Voltage:		Die-cast aluminum
220V		Dimensions:
Operating Temperature:		185x143x82mm (LxWxD)
-40℃～70℃		Link Thread:
Operating Humidity:		M20*1.5(Female) G1/2(Inner Thread}
0-93%RH (non-condensing)
