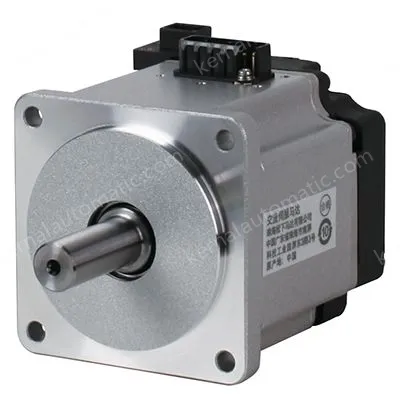

Panasonic servo motor

Ship to Stock in: Warehouse

MHMF082L1D1

★★★★★4.93854 Reviews

Wholesale Price

Model: MHMF082L1D1

Order No:

SKU: 10000007703201

Category: Servo motor

Brand: PANASONIC

Size: 0.00CM, 0.00CM, 0.00CM,0.00cm

Weight: 3.00kg

Product Selection Engineer: Zhangyuchong

Leading

Customer Service Guarantee

100% secure payment

Quality Guarantee

No Reason Returns

You May Also Like

Selling List

Description Reviews

MHMF082L1D1

Part Number	MHMF044A1A9M
Product	Servo Motor (Battery-less absolute encoder type)
Details	High inertia, Connector type
Product name	MINAS A6 Family Servo Motor
Features	50 W to 22 kW, Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V, 23 bit Absolute/Incremental・battery-less Absolute/Incremental encoder, Frequency response 3.2 kHz

MHMF082L1D1

Item	Specifications
Part Number	MHMF044A1A9M
Details	High inertia, Connector type
Family Name	MINAS A6
Series	MHMF Series
Type	High inertia
Special Order Product	Please avoid the motor, or equipment containing the motor to be distributed to Japan, or other regions through Japan.
Protection class	IP67
About Enclosure	Except rotating portion of output shaft and the motor connector and the encoder connector.
Environmental Conditions	For more details, please refer to the instruction manual.
Flange sq. dimension	60 mm sq.
Flange sq. dimension (Unit:mm)	60
Motor lead-out configuration	Connector
Motor encoder connector	Angled Receptacles
Power supply capacity (kVA)	1.8
Voltage specifications (V)	400
Rated output (W)	400
Rated current (A (rms))	1.1
Holding brake	without
Mass (kg)	1.4
Oil seal	without
Shaft	Round
Rated torque (N ⋅ m)	1.27
Continuous stall torque (N ⋅ m)	1.4
Momentary Max. peak torque (N ⋅ m)	4.46
Max. current (A (o-p))	5.3
Regenerative brake frequency (times/min)	Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0PM20048
About regenerative brake frequency	Please refer to the details of [Motor Specification Description] , Note: 1, and 2.
Rated rotational speed (r/min)	3000
Rated rotational Max. speed (r/min)	6500
Moment of inertia of rotor ( x10^-4 kg ⋅ m²)	0.56
Recommended moment of inertia ratio of the load and the rotor	30 times or less
About recommended moment of inertia ratio of the load and the rotor	Please refer to the details of [Motor Specification Description] ,Note: 3.
Rotary encoder: specifications	Battery-less 23-bit Absolute/Incremental system
Notice	Do not connect the battery as it uses a batteryless absolute encoder.
Rotary encoder: Resolution	8388608
