Brief Introduction

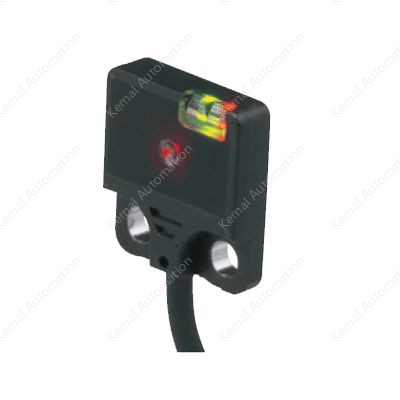

EX-11B(EX-11BD+EX-11P)

Regulatory compliance CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations)<br/> Sensing range 1 m 3.281 ft<br/> Sensing object Min. dia. 2.6 mm dia. 0.102 in opaque object (Setting distance between emitter and receiver: 1 m 3.281 ft)<br/> Hysteresis -<br/> Repeatability(perpendicular to sensing axis) 0.05 mm 0.002 in or less<br/> Supply voltage 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less<br/> Current consumption Emitter: 10 mA or less<br/> Receiver: 10 mA or less<br/> Output PNP open-collector transistor<br/> - Maximum source current: 50 mA<br/> - Applied voltage: 30 V DC or less (between output and +V)<br/> - Residual voltage: 2 V or less (at 50 mA source current), 1 V or less (at 16 mA source current)<br/> Output:Utilization category DC-12 or DC-13
