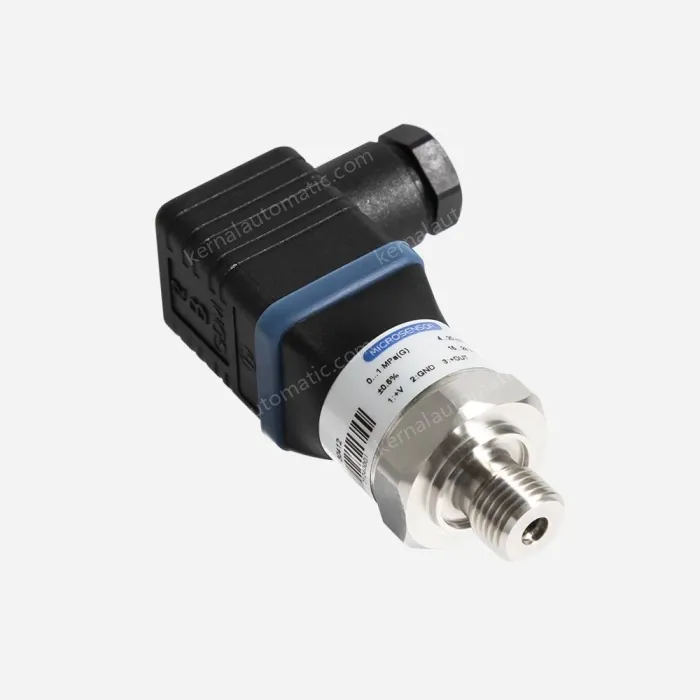

Pressure Transmitter Suitable For General Industry

· Range: 0~250mbar to 0~250bar · Accuracy:±0.25%FS, ±0.5%FS · Output: 4mA~20mA DC, 0/1V~5/10V DC, 0.5V~4.5V DC Used For General Industry Measurement & Control, Pump & Compressor, Hydraulic Pressure & Pneumatic Device

Micro Sensor M20 pressure transmitter is designed for general industry use which requires high accuracy, good reliability and stability. It is designed with precision, featuring a highly integrated electrical structure and full digital temperature compensation and calibration. M20 is certificated with international certifications under outstanding reliability like CE, RoHS, UL and REACH, etc. M20 is capable to measure medium of air, water, mixed oil, or other fluid that can be compatible with wetted parts and tailor-made is available.The M20 pressure transmitter contributes to process optimization, quality control, and safety in manufacturing and automation, petrochemical and chemical processes, power generation, and the oil & gas industry.Feature • Small Size • Measurement in general industrial occasions • CE, RoHS, ULcertifications • Compatible with various medium • Flexible options meet specific application requirementsSpecifications • Pressure Range: 0~250mbar to 0~250bar • Electrical Connection: Angular Connector DIN 175301-803A Circular Aviation Plug M12×1(4pin) IEC 61076-2-101 Cable Φ5.0mm 5×0.12mm² Polyurethane • Accuracy: ±0.25%FS (@25℃ ), ±0.5%FS (@25℃ ) • Process Connection: M20×1.5/G1/4A/NPT1/4/R1/4 Other threads available on request • Output: 4mA ~20mA DC, 0V~5V DC, 1V~5V DC, 0V~10V DC, 0.5V~4.5V DC • Structure Specification: Full welded, molecular sieve
