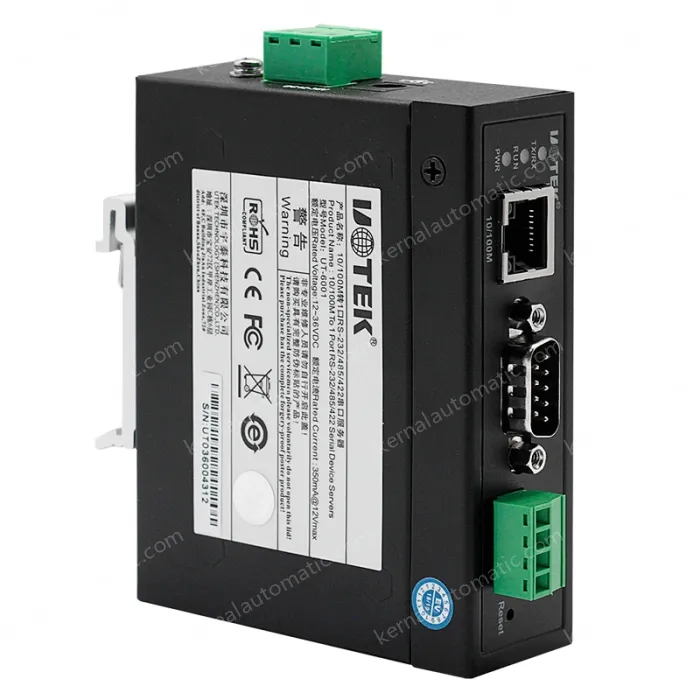

UT-6801 serial device server provides a serial to network function that converts RS-232/485/422 serial ports into TCP/IP network interfaces, enabling transparent bi-directional data transmission between RS-232/485/422 serial ports and TCP/IP network interfaces. Enables serial devices to immediately have TCP/IP network interface functionality.
- With metal housing and multiple installation design, suitable for industrial control site applications.
- Wide power input (12~57.6VDC), suitable for different field power supply methods
- There is 1 RS232/RS485/RS422, to meet the application of multiple serial ports
- Support a wide baud rate range of 300-921600bps, suitable for applications between different devices
- Support multiple operation modes: VCOM, MCP, TCP SERVER, TCP CLIENT, UDP, Remote Pair mode, Modbus TCP SERVER, Modbus TCP CLIENT, MQTT.
- Support upgrade Web firmware upgrade, convenient for special applications in different occasions
Technical Parameters
Processor | 32bit 400MHZ |
Storage | 128M |
Ethernet interface | 10/100M(Built-in 1.5KV electromagnetic isolation) auto MDI/MDI-X Ethernet interface, RJ45 interface |
Serial Standard | RS-232, RS-485, RS-422 |
Serial RS-232 port | DB9 male |
Serial RS-485/422 port | 3.81 unplugged terminal block |
Indicator light | Power indicator light PWR, Running indicator light RUN, Serial port transmit and receive indicator DATA. |
Power connector | DC-005 DC socket or 3Pin 5.08 terminal for power supply, with built-in protection against reverse connection, to avoid damage to the equipment by wrong positive and negative connection |
Power range | DC12~57.6V |
Function buttons | 1 factory reset button RESET |
Max. power consumption | 1.6W |
Housing | Metal housing, protection level IP30 |
Operating environment | Storage temperature: -40~85°C Operating temperature: -40~85°C Relative humidity: 5% ~95% (Non-condensation) |
Mounting method | Default rail mount, fixed piece mount (wall mount optional) |
Dimensions L×W×H | 100mm×80.8mm×30mm（Without mounting parts） |
Net. Weight | 270g |
Software Parameters
Operating System | Based on Linux |
Protocol support | ARP,IP,ICMP,UDP,TCP,HTTP,DHCP,SNMP,MQTT,MODBUS |
Configuration method | Web browser, VCOM Utility(Virtual COM Only Windows) |
Operating Mode | VCOM,MCP,TCP SERVER,TCP CLIENT,UDP,Remote Pair mode,Modbus TCP SERVER,Modbus TCP CLIENT, MQTT |
Baud rate | 300-921600bps |
Data Bits | 5,6,7,8 |
Stop Bits | 1,2 |
Check Bits | None,Odd,Even |
Flow Control | RTS/CTS,DTR/DSR,XON/XOFF（Only RS-232） |
