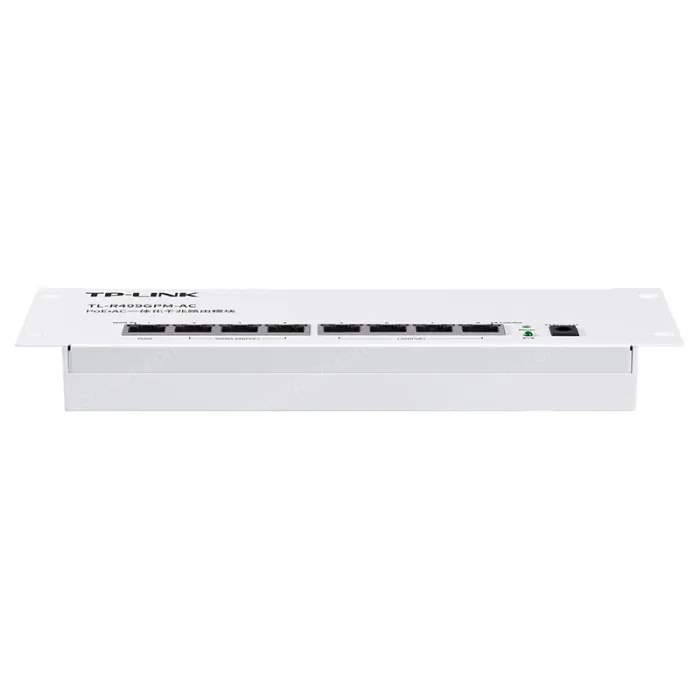

TP-LINK's new PoE· The AC integrated routing module series has built-in AC (wireless controller) and 7-port standard PoE power supply function, which can uniformly manage and supply power to TP-LINK AP products, simplifying the complexity of home wireless networking. The product is small in size and can be deployed in the home information box/weak current box.

The built-in AC function can be used to manage TP-LINK enterprise APs in a unified manner

The built-in AC function is both a router and a wireless controller, which can control up to 50 TP-LINK enterprise APs in a unified manner, making it easy to expand the enterprise wireless network.

It can automatically discover the TP-LINK AP in the network, configure and manage the AP in a unified manner, realize zero-configuration AP access, plug and play, and support AP status monitoring, AP upgrade, and scheduled restart, which is easy to maintain.

Gigabit port, meeting the domestic mainstream specifications of optical fiber access services

The WAN port and LAN port of TL-R499GPM-AC are designed with gigabit wired ports, which are ten times higher than the previous 100 Gigabit ports, and are suitable for 50M, 100M, 200M, and 300M optical fiber broadband access, which can meet the domestic mainstream specifications of optical fiber access services.

Bringing together three functions to simplify the complex

TP-LINK PoE· The AC integrated routing module integrates PoE power supply, AC (wireless control), and routing technologies, and is directly connected to TP-LINK AP collocation is a complete and concise wireless networking solution, allowing home users to enjoy hotel-grade wireless coverage.

The mini body fits easily into the information box

Fully considering the networking needs of home users and small and micro enterprises, the module body design can be controlled with one hand, and it can be easily put into the information box/weak current box.

One network cable, power supply at the same time, convenient wiring

The built-in standard PoE network cable power supply module only needs one network cable to connect to the AP and can work independently, without additional power supply, and the wiring is simple and convenient.

• One 10/100/1000M WAN port, three 10/100/1000M WAN/LAN ports, and four 10/100/1000M LAN ports are provided
• It is specially designed for weak current box/information box, and the size is 225mm*74mm*24mm
• All LAN ports support standard PoE power supply, in line with the IEEE802.3af/at standard, and the maximum output power of a single port is 30W
• The built-in AC function can manage up to 50 TP-LINK APS IN A UNIFIED MANNER
• It supports the 4WAN port function, and users can flexibly configure the number of WAN ports according to actual needs
• Support APP management, through the TP-LINK mobile APP, easy to manage and configure network devices at home
