Summary

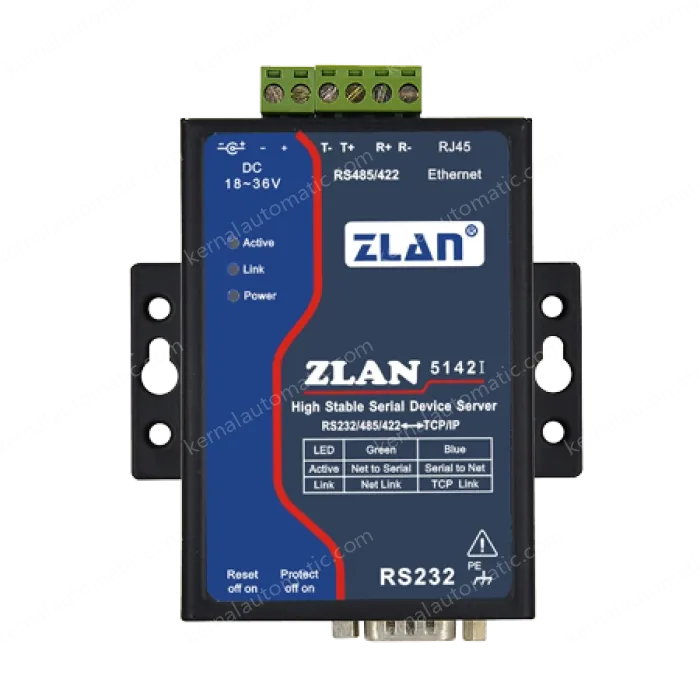

ZLAN5142I is a high reliability and high performance serial device server and Modbus Gateway product designed by Shanghai ZLAN special for lightning resistance, anti-electromagnetic interference and resisting bad environment requirements, is the flagship product on serial device server. Can be applied to industrial application requiring anti-jamming, anti-tunnel monitoring, wind power, field geological disasters monitoring and so on.
ZLAN5142I has good interface isolation characteristic. The RS485/422 not only have ±15V antistatic, but also have 2500V interface isolation, as adding 2500V AC voltage between RS485 wire and shell, the current leakage into ZLAN5143 is less than 5 mA.
The RS485 of ZLAN5142I can drive 256 load capacity, compared to the product driving 32 loads, it can achieve the ability of monitoring more equipment to save cost.ZLAN5142I has three interface types: RS232/485/422. The input voltage can provide DC Q2. 1 jack or terminal type, the input voltage is 18~36V (can be customized 12V). It can be equipped with guide installation accessories.
Features
- Interface insolation: the power can reach 3KV insolation voltage; RS485/422 can reach 2.5KV insolation voltage; ±15KV ESD protection function; More than 25KV/US high common mode transient suppression.
- RS485/422 has the ability of 256 loads.
- Three interface types: RS232/485/422. RS422 needs customized internal jumpers, should be informed before buying.
- Support 18~24V power supply, interface are DC Q2. 1 jack and terminal wiring. Can be customized 12V power input.
- Having both functions: serial device server with transparent transmission and Modus gateway. Under transparent transmission, support full duplex, high speed data forwarding, no packet loss; Modbus gateway use storage type, the speed is faster than general forwarding mode.
- Support TCP Server, TCP Client, UDP mode, UDP multicast.
- The baud rate support 1200~115200bps, the data bits support 5~9, check bits can be five types: None, Odd, Even, Mark, Space, support CTS/RTS hardware flow control. If need to support 460800bps, choose model ZLAN5142I.
- Rich single light: power, wiring connection, TCP connection, data activity.
- Support multiple TCP connection, as a TCP Server, can be connected with 40 clients. As a TCP Client, can connect with 8 different destination IP and port at the same time.
- Real COM Driver support multicomputer communication though the 9th (address frame is 1, data frame is 0).
- Support remotely searching 5143I and configuring parameters through internet, can upgrading procedure and downloading configuration Webpage through Ethernet port.
Isolation Characteristic
- Power Isolation
- 3KV
- RS485/422 Isolation
- 2.5KV
- HCMTI
- 25KV/us
- RS485/422 ESD Protection
- 15KV
Communicate Interface
- Ethernet
- 10M/100M, 2KV surge protection
Serial Parameters
- Serial
- RS-232/485/422
- Parity bits
- None, Even, Odd, Space, Mark
- Data bits
- 5～9
- Stop bit
- 1,2
- Flow control
- RTS/CTS,DTR/DCR, XON/XOFF
- Baud rate
- 1200bps～115200bps
Software
- Protocol
- TCP,HTTP,UDP,ICMP,ARP,IP,DNS,DHCP
- Net communication method
- Socket, Virtual serial , device management library
- Setting method
- ZLVirCom, WEB browser, device management library
Power
- Power
- 18~36V DC, 400~600mW（can be customized 12V input）
Figure
- Size
- L x W x H =9.4cm×6.5cm×2.5cm
Environment
- Running temperature
- -45～85℃
- Storage temp
- -45～165℃
- Humidity
- 5～95% RH
